Horizontal Linear Motion Dewatering Screens (HLMDS)

Horizontal linear motion dewatering screensThe HLMDS is the Minspec range of horizontal screens, features include ease of installation and maintenance.

General specification

Vibrating mechanisms

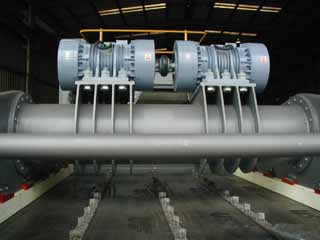

The screens are excited by twin under and over Uras out of balance motors for ease of installation and maintenance
This type of arrangement is easier to maintain due to the elimination of daily greasing of bearings and labyrinths.

Mechanism drive beam
This is of circular construction complete with large end flanges for even dissipation of forces through the side plate. After fabrication and weld testing the beams are stress relieved, end plates and exciter pads are machined and precision drilled to facilitate fitment between sideplates and accommodate the exciters.

Side plates
The side plates are grade 250 steel stress relieved and c/w drip angles, stiffeners and spring brackets.

Deck frames
The deck frame cross members are made from hollow section, after fabrication and weld testing the deck frame is stress relieved.

Screen cloths
Will be modular polyurethane or wedgewire to the customers requirements.

Feed box
The feed box will be lined with bolt on liners extended to overlap first panel to ensure no spillage down back of panels.

Discharge lip
The discharge lip is a blank polyurethane panel with drip ledge to prevent spillage into the undersize chute

Isolation
Four point isolation is by means of plastic coated steel coil springs c/w base plates

MINSPEC HLMDS = LESS MAINTENANCE

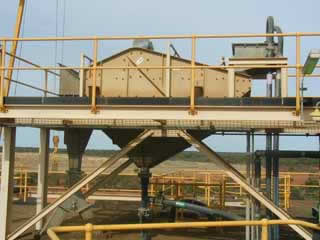

Inclined Circular Motion 2.4 x 4.8

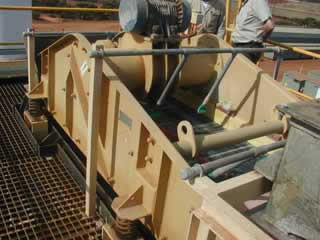

Horizontal Liner Motion 1.2 x 2.4
